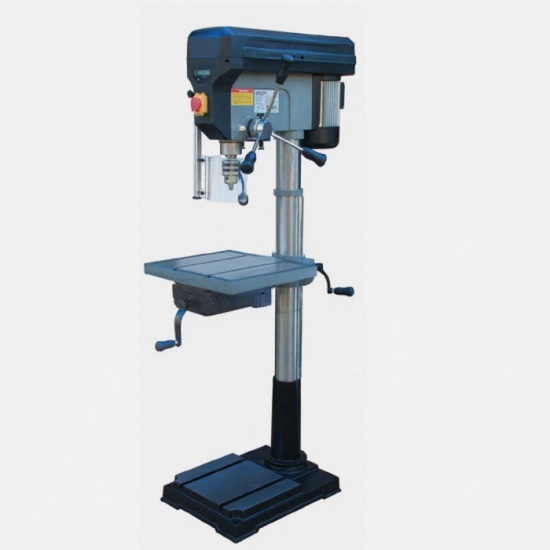

Bench Drilling Machine BD25E,BD32E
Add to Wishlist
Add to Wishlist
Main Features:
1. Digital display for spindle stroke and LED-lamp come standard
2.Grey cast iron pulleys ensure smooth run
3.High-quality ball bearings guarantee a high concentricity of ≤ 0,03 mm,measured at spindle
4. Large drill table features diagonal T-slots
5. Drill table tilts (±45°), gear rack allows height adjustment
6. High performance aluminium motor in accordance with the IP 54 standard
7. Complete with high-quality keyless drill chuck
8. Polished machine base features T-slots
9. Clearly arranged handles ensure high comfort when working
10. spindle protection available.
11.with squareworktable.
Description
| MODEL | BD25E | BD32E |
| MOTOR POWER | 1100 | 1100 |
| CHUCK | 20 | 20 |
| SPINDLE STROKE | 120 | |
| SPINDLE TAPER | MT3 | MT4 |
| SPEED CHANGE | 12 | |
| SPEED RANGE 50HZ/60HZ | 150-2450/180-2940 | |
| SWING | 438 | 510 |
| WORK TABLE SIZE | 350X350 | 470X420 |
| BASE SIZE | 510X350 | 580X430 |
| COLUMN DIA. | 92 | |
| TOTAL HEIGHT | 1680 | 1720 |
| G.W/N.W | 108/98 | 128/118 |
| PACKING DIMENSION | 143X66X32CM | |
