Cross slide table AKP series 201,202,203,204,205

Cross slide table AKP series 201,202,203,204,205

Add to Wishlist
Add to Wishlist

Main features：

1.Worktable surface material is made of cast #250.

2. leadscrew exposed and it’s idle stroke 0.06mm

3.X,Y axis reticle tolerance is 0.05mm

4.surface parallelism is 0.03mm/100mm

Order on WhatsApp
Category:

Description

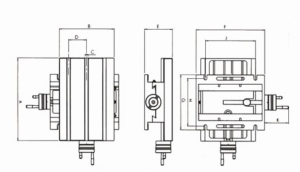

Model A B C D E F G H J X travel Y travel Qty/carton packing size N.W/G.W
201 185 100 10 35 102 170 130 115 100 80 50 1 28X28X17 10.5/11.5
202 225 175 12 72 108 225 175 148 160 105 90 1 36X36X20 16/17
203 330 220 12 72 115 275 220 190 275 190 100 1 41X35.6X17.3 23/26
204 425 240 12 72 125 335 276 240 245 225 150 1 56X44X18.5 41.5/45
205 600 240 12 72 125 335 276 240 245 400 150 1 77.2X44X18 51/56
