K11,K11A 3-jaw Self-centering chuck

K11,K11A 3-jaw Self-centering chuck

Add to Wishlist
Add to Wishlist

Main features:

1.   K11 series Three-jawSelf-centring chuck is subdivided into three types,K11,K11A.

2.   Type K11 provides two sets ofclutches in different directions,which can be used respectively.

3.   Type K11A provides,ISO3442standard clutches.

4.   Soft clutches are to beprovided on request,higher centring accuracy can be achieved after being rubbedon the machine,so as to satisfy the need for holding.

Order on WhatsApp
Category:

Description

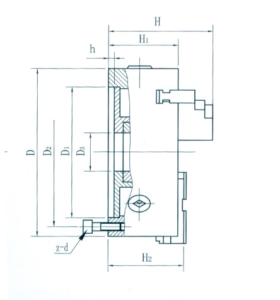

Model D1 D2 D3 H H1 H2 h Z-d
Size D
K1180 55 66 16 66 50 – 3.5 3-M6
K11100 72 84 22 74.5 55 – 3.5 3-M8
K11125 95 108 30 84 58 – 4 3-M8
K11130 100 115 30 86 58 – 4 3-M8
K11160 130 142 40 95 65 – 5 3-M8
K11160A 142 40 109 65 71 5 3-M8
K11165 130 145 40 95 65 – 5 3-M8
K11165A 145 40 109 65 71 5 3-M8
K11190 155 172 55 109 75 – 5 3-M8
K11190A 172 55 122 75 80 5 3-M8
K11200 165 180 65 109 75 – 5 3-M8
K11200A 180 65 122 75 80 5 3-M8
K11240 195 215 70 120 80 – 8 3-M8
K11240A 215 70 133 80 85 8 3-M8
K11250 206 226 80 120 80 – 5 3-M8
K11250A 226 80 133 80 85 5 3-M8
K11315 260 285 100 142.5 90 – 5 3-M8
K11315A 285 100 155.5 90 96.5 5 3-M8
K11320 270 290 100 142.5 90 – 5 3-M8
K11320A 290 100 155.5 90 96.5 6 3-M16
K11325 272 296 100 142.5 90 – 6 3-M16
K11325A 296 100 155.5 90 96.5 6 3-M16
K11380 325 350 130 155.5 100 – 6 3-M16
K11380A 350 130 170.5 100 110.5 6 3-M16
K11400 340 368 130 155.5 100 – 6 3-M16
K11400A 368 130 170.5 100 110.5 6 3-M16
K11500 440 465 200 176 115 – 6 6-M16
K11500A 465 200 203 115 123 6 6-M16
K11630A 560 595 260 218 130 138 7 6-M16
K11800A 710 760 385 242 149 159 8 6-M20
K11 1000A 910 950 460 266 165 – 8 6-M24
K11 1250A 910 950 500 281 180 – 10 6-M24
