K12,K12A 4-jaw Self-centering chuck

K12,K12A 4-jaw Self-centering chuck

Add to Wishlist
Add to Wishlist

Main features:

1.   K12 series Three-jawSelf-centring chuck is subdivided into three types,K12,K12A.

2.   Type K12 provides two sets ofclutches in different directions,which can be used respectively.

3.   Type K12A provides,ISO3442standard clutches.

4.   Soft clutches are to be provided on request,higher centring accuracy can be achieved after being rubbed on the machine,so as to satisfy the need for holding.

Order on WhatsApp
Category:

Description

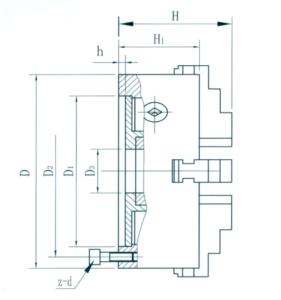

Size D D1 D2 D3 H H1 h Z-d
K1280 55 66 16 66 50 3.5 3-M6
K12100 72 84 22 74.5 55 3.5 3-M8
K12125 95 108 30 84 58 4 3-M8
K12130 100 115 30 86 60 3.5 3-M8
K12160 130 142 40 95 65 5 3-M8
K12160A 142 40 109 65 5 3-M8
K12165 130 145 40 96.5 66.5 4.5 3-M8
K12165A 145 40 110.5 66.5 4.5 3-M8
K12190 155 172 55 109 75 5 3-M10
K12190A 172 55 122 75 5 3-M10
K12200 165 180 65 109 75 5 3-M10
K12200A 65 122 75
K12250 206 226 80 120 80 5 3-M12
K12250A 226 80 136 80 5 3-M12
K12315 260 285 100 142.5 90 6 3-M16
K12315A 285 100 155.5 90 6 3-M16
K12320 270 290 100 142.5 90 6 3-M16
K12320A 290 100 155.5 90 6 3-M16
K12325 272 296 100 142.5 90 6 3-M16
K12325A 296 100 155.5 90 6 3-M16
K12380 325 350 130 155.5 100 6 3-M16
K12380A 350 130 171.5 100 6 3-M16
K12400 340 368 130 155.5 100 6 3-M16
K12400A 368 130 171.5 100 6 3-M16
K12500A 440 465 200 203 115 6 6-M16
K12630A 560 595 260 218 130 7 6-M16
K12800A 710 760 385 249 148 8 6-M20
K121000A 910 950 460 266 165 8 6-M24
