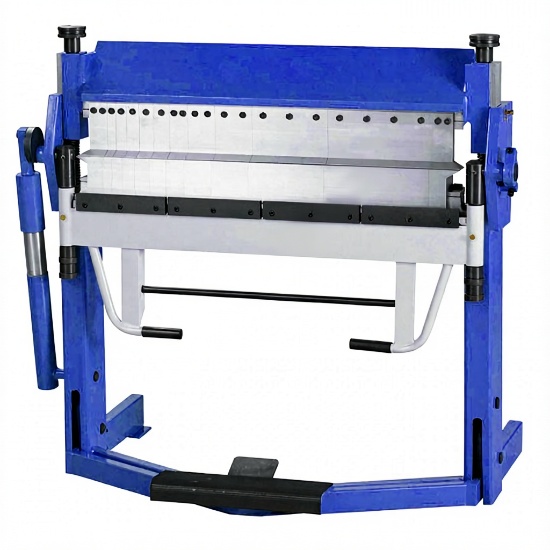

Manual folding machine PBB1020-2.5,PBB1270-2,PBB1520-1.5
Add to Wishlist
Add to Wishlist
Features:
1.For formed component bending.
2.Afully welded structure, and compact high quality engineering, ensure minimummaintenance, together with simple and safe operation.
3.Havethe function of air spring which can be installed inside the arm(Optional).
4.Adjustablebending angle stop with scale up to 135°
5.Withfoot control. It is easy for operation and relax hands.
6.Segmentedtop beam tools.
Description
Model | PBB1020/2.5 | PBB1270/2 | PBB1520/1.5 |
Max.working length(mm) | 1020 | 1270 | 1520 |
Max.sheet thickness(mm) | 2.5 | 2.0 | 1.5 |
Max.clamping bar lift(mm) | 47 | 47 | 47 |
Folding angle | 0-135° | 0-135° | 0-135° |
Packing size(mm) | 1460x620x1270 | 1700x710x1270 | 1960x710x1300 |
N.W./G.W.(kg) | 285/320 | 320/360 | 385/456 |
