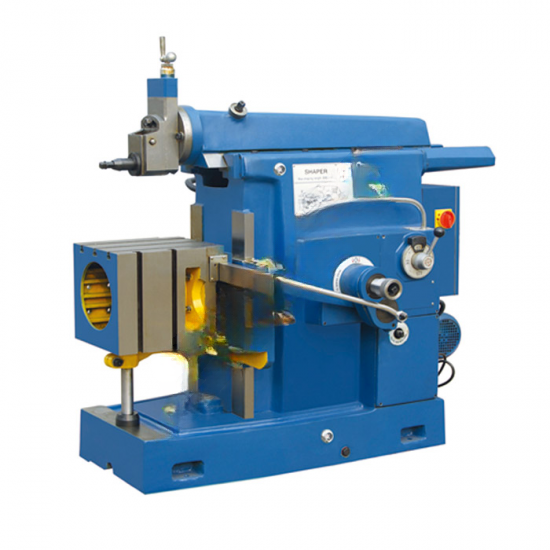

shaping machine BC6085,BC60100

shaping machine BC6085,BC60100

Add to Wishlist
Add to Wishlist

Main features:

1. The worktable can about rotate angles, meanwhile, it isequipped with horizontal and lifting mechanism for planing inclined

plane which enlarge its using scope.

2. It is convenient to adjust feedings and change tool path by adopting cammechanism as feeding system.

3. The shaper has installed protections against overloading inside the toolpath system, due to careless operation or external influences and overload cutting,

the blade will slide automatically, non-destructive parts will work toensure the normal operation of the machine.
4. The RAM, rail bed, speeding gear and major sliding guide are all lubricatedby the oil pump.

5. The shaper has parking brake mechanism, therefore, it is unnecessary to cut off electric power when changing speed,

starting and stopping the machine

Order on WhatsApp
Category:

Description

Model BC6085                  BC60100
Maximum cutting length(mm) 850 1000
Maximum table horizontal travel(mm) 400 800
Maximum distance from ram bottom to table surface(mm) 710 400
Maximum table vertical travel(mm) 360 380
Dimensions of table top surface(L×W)(mm) 800X450                1000×500
T ravel of tool head(mm) 160 160
Swivel of tool head(°) ±60°                  ±60°
Maximum size of tool shank(W×T)(mm) /                30×45
Number of ram strokes per minute  17、24、35、50、70、100            15、20、29、42、58、83
Range of table power feed horizontal 0.25~3 horizontalvertical 0.3~3
vertical 0.12~1.5 0.15~0.5
Rapid feed of table horizontel(mm/min) 3 horizontalvertical 3
vertical (mm/min) 1.5 0.5
Width of central T-slot of table(mm) 22 22
Power of motor(kw) 5.5 7.5
Overall dimensions(L×W×H)(mm) 2950x1325x1693   3640×1575×1780
Weight(kg) 2940/3090 4600/4800
