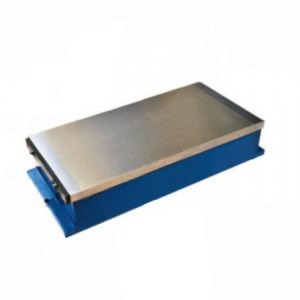

New Model Tilting Dense Magnetic Chuck XM42A

New Model Tilting Dense Magnetic Chuck XM42A

Add to Wishlist
Add to Wishlist

Features:

1.  It is a kind of surface grinding machine rectangle grinder and tool grinder and lathe of main accessories.

2.  Extra strong magnetic force andless remaining magnetism.

3.  While turning magnetic for ON or OFF, the accuracy of magnetic force surface does not change and cankeep high precision

processing surface.

4.  Large effective area for machining the work pieces.

5.  Constructed of hardened alloy tool steel.

6.  Low height for more wheel clearance.

7.  Positive locking at all angles without any distortion.

Order on WhatsApp
Category:

Description

Model British standard Terrace dimensions Contour dimensions（mm） Grinding angle Pole pitch（mm） Magnetic（N/cm2） Weight（kg） Overall（cm）
L W L W H
XM42 125*250A 5*10 250 125 365 125 150 0-±90° 1.5+0.5 ≥100 28 46*22*22
XM42 150*150A 6*6 150 150 265 265 150 0-±90° 1.5+0.5 ≥100 22 36*25*22
XM42 150*300A 6*12 300 150 415 415 150 0-±90° 1.5+0.5 ≥100 40 51*25*22
