Power operated hydraulic press JMDYy

Main features:

1. Optimally designedsteel-frame structure, is sturdy and durable

2. Single piston double-actinghydraulic oil cylinder, is durable

3. Up stroke and down stroke ofcylinder rod controlled by manual, is convenient and flexible

4. Oil cylinder moves left andright, pressure head works at multiple points

5. Beam of work platform moveslifting device from up to down, is convenient and easy

6. Electric pump, manualcompensation, easy to operate Piston rod chromiumplating laye 3μm

7. Sealing element grade B

Description

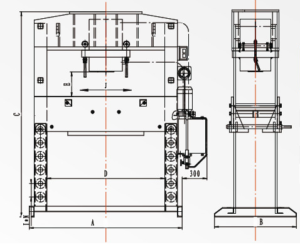

Model	Max.pressure(KN)	Hydraulic pressure (Mpa) Electric/Manual	Stroke of cylinder rod(mm)	Working speed(mm/s)	Adjustment distance of woektable(mm×n)	Motor power(kw)	Net weight(kg)	A	B	C	D	E	J
JMDYy50/50	490	20/25.5	250	3/h4	150×4	2.2	506	1026	700	1805	700	304	335
JMDYy60/25	588	20/26	250	2.6/h3.6	150×5	2.2	560	1076	700	1863	750	368	360
JMDYy100/30	980	20/25.5	300	2.5/h3.5	150×5	3	1150	1480	790	2120	1100	185	640
JMDYy160/30	1568	20/25.5	300	2.4/h3.6	150×5	4	1790	1476	870	2200	1100	297	580
JMDYy200/30	1960	20/24.5	300	1.8/h2.7	150×5	4	2750	1686	900	2270	1300	273	730
