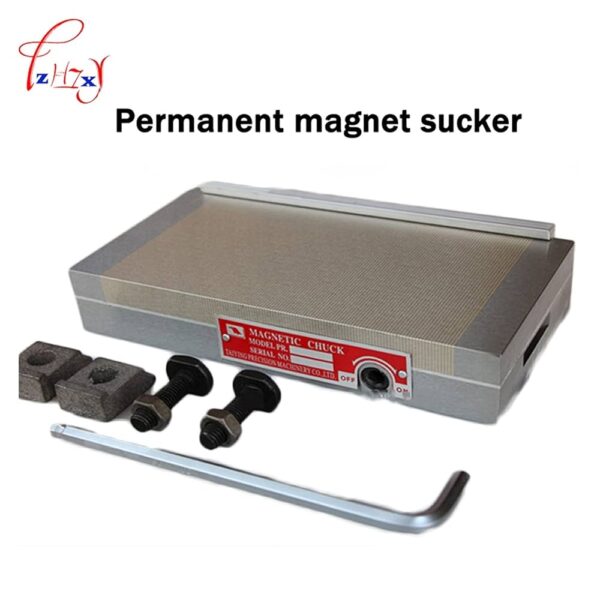

Powerful Permanent Magnetic Chuck XM91

Powerful Permanent Magnetic Chuck XM91

Add to Wishlist
Add to Wishlist

Features:

1.  It is a kind of surface grinding machine rectangle grinder and tool grinder and lathe of main accessories.

2.  Extra strong magnetic force andless remaining magnetism.

3.  While turning magnetic for ON or OFF, the accuracy of magnetic force surface does not change and cankeep high precision

processing surface.

4.  Large effective area for machining the work pieces.

5.  Constructed of hardened alloy tool steel.

6.  Low height for more wheel clearance.

7.  Positive locking at all angles without any distortion.

Order on WhatsApp
Category:

Description

Model
 imperial Dimensions  mm Pole pitc(mm) Magnetic（N/cm2） Weight（kg） Overall（cm）
L W H
XM91 125*250 5*10 250 125 50 1.5+0.5/3+1/4+2 ≥ 100 14.5 35*23*12
XM91 150*150 6*6 150 150 50 1.5+0.5/3+1/4+2 ≥ 100 10.5 24*24*12
XM91 150*300 6*12 300 150 50 1.5+0.5/3+1/4+2 ≥ 100 20 40*25*12.5
XM91 150*350 6*14 350 150 50 1.5+0.5/3+1/4+2 ≥ 100 24 44*25*12.5
XM91 150*400 6*16 400 150 50 1.5+0.5/3+1/4+2 ≥ 100 28 50*25*12.5
XM91 150*450 6*18 450 150 50 1.5+0.5/3+1/4+2 ≥ 100 32 57*25*12.5
XM91 200*400 8*16 400 200 55 1.5+0.5/3+1/4+2 ≥ 100 38 53*30*1.5
XM91 200*450 8*18 450 200 55 1.5+0.5/3+1/4+2 ≥ 100 43 57*30*12.5
XM91 200*500 8*20 500 200 55 1.5+0.5/3+1/4+2 ≥ 100 47 64*30*12.5
