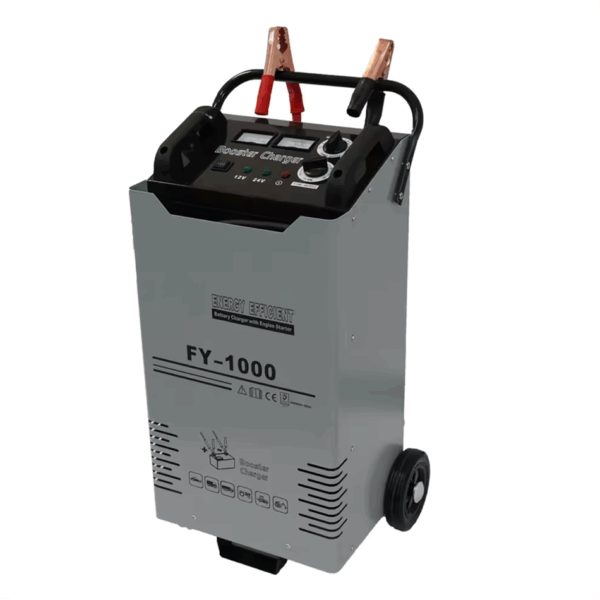

Battery charger FY series

Battery charger FY series

Add to Wishlist
Add to Wishlist

Main features:

1. Voltage and current output auto-detect function to provide astable charge

2. Equipped with voltmeter & ammeter

3. Protected against shorts and overloads

4. Charging more than one battery at a time

5. Jump-starting, fast and slow charging for 12V – 24V batteries

Order on WhatsApp
Category:

Description

Model FY-650 FY-850 FY-1000 FY-1400 FY-1600 FY-2000 FY-3600
Input voltage(V) 220 220 220 220/380 220/380 220/380 380
Output voltage(V) 12-24
Charging current(A) 6-37 7-39 8-42 11-50 15-60 20-72 20-90
Instant-start current(A) 335 430 500 1250 1500 1800 3600
Power (KVA) 0.8/7.6 0.95/10.5 1/16 1.4/11 2/16 2.5/20 1.46/25
Overall dimension(mm) 340×260×620 440×340×830 470×380×865
