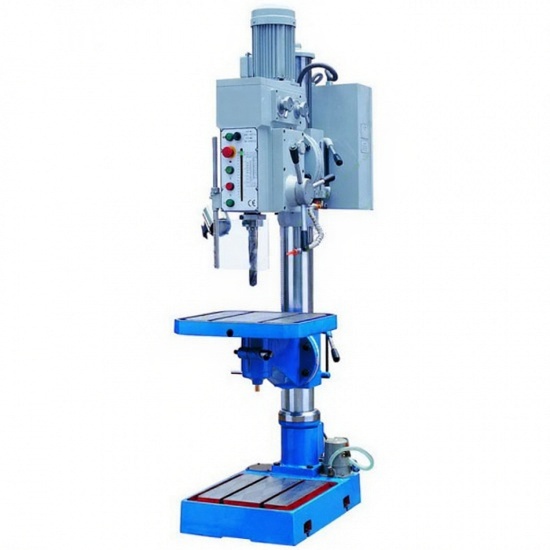

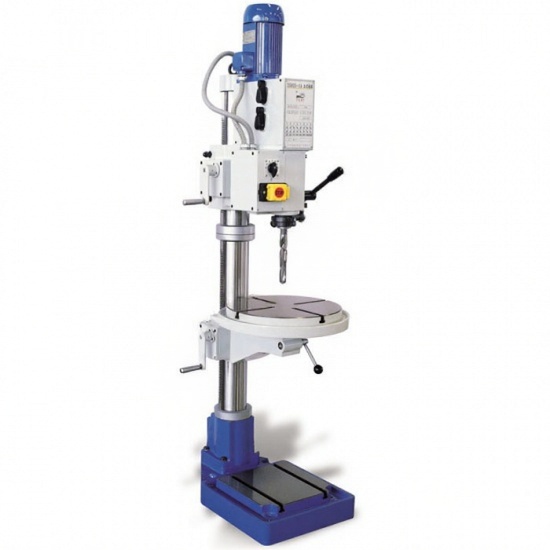

Round Column Drilling Machine Z5032A

Features:

1.Gear driven system, 12 steps ofspindle speed.

2.Convenient loading andunloading tool device.

3.Automatic feed andtapping(Electromagnetic clutch),realize auto feed and tapping by putting anybutton on the feed handle.

4.CE or CSA or UL approved mainelectrical components.

5.Safety drill-guard withmicro-switch.

6.Worktable can be tilted ±45°and rotated ±180°round thecolumn.

7.Spindle box can be tilted ±45°and liftedup and down along the column.

8.Overload and short cutprotection

9.With coolant system

Description

Descriptions		Z5032A
Max. Dia. of drilling		32mm
Distance between axis of spindle and generating line of column		350mm
Max. Distance between spindle nose and surface of worktable		690mm
Max. Distance between spindle nose and base surface		1250mm
Max. Travel of spindle		160mm
Horizontal swing degree of spindle box		±45°
Max travel of work table and bracket		490mm
Horizontal swing degree of work table and bracket		±45°
Taper of spindle bore		4 Morse
Number of spindle speeds		12 steps
Range of spindle speeds		65～2600 r/min
Spindle feed steps		3 steps
Spindle feed range		0.1, 0.2, 0.3mm/r
Dia. of column		Φ120mm
Effective working area of worktable(L×W)		430×380mm
Effective working area of base(L×W)		400×360mm
Work table and base T-slot		2-14mm
3-phase 2-speed AC Motor	Power	1/1.5kw
(YD90L2-6/4-Special type)	Voltage	380（220、400、420）V
	Speed	960/1450 r/min
3-phase electrical pump	Power	0.085kw
	Voltage	380（220、400、420) V
	Flow rate	6 L/min
Electromagnetic Clutch (DLYO-10S)	Power	0.024kw
	Voltage	24V
Machine dimension(L×W×H)	950×620×2100mm
G.W./N.W.	550/485 kgs
