shaping machine BC6085,BC60100
Compare

shaping machine BC6085,BC60100

Available on backorder
Main features: 1. The worktable can about rotate angles, meanwhile, it isequipped with horizontal and lifting mechanism for planing inclined plane which enlarge its using scope. 2. It is convenient to adjust feedings and change tool path by adopting cammechanism as feeding system. 3. The shaper has installed protections against overloading inside the toolpath system, due to careless operation or external influences and overload cutting, the blade will slide automatically, non-destructive parts will work toensure the normal operation of the machine. 4. The RAM, rail bed, speeding gear and major sliding guide are all lubricatedby the oil pump. 5. The shaper has parking brake mechanism, therefore, it is unnecessary to cut off electric power when changing speed, starting and stopping the machine
Add to Wishlist
Add to Wishlist

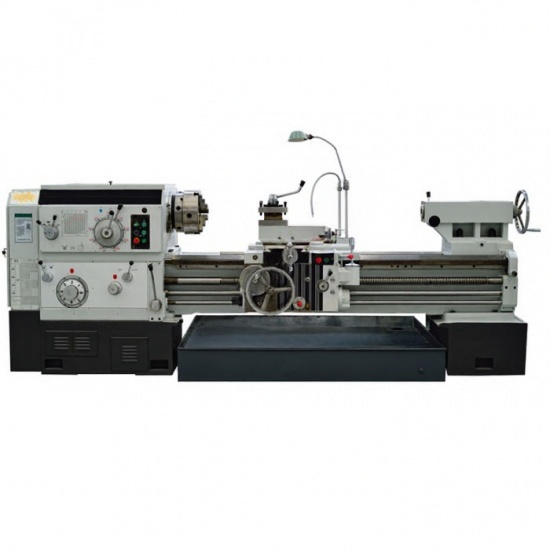

Heavy Duty Horizontal Lathe Machine CW6280B
Compare

Heavy Duty Horizontal Lathe Machine CW6280B

Available on backorder
Features: 1.The side wall of bed is constructed with coublerib plates.and the shape of internal ribs is of box type and bevel ribs combination.The rigidity is higher than that of ordinary lathes.The precision is stable.And these lathes can carry out strong force cutting. 2.On apron,there is a device,operated by a single lever,used for rapid traverse of the carriage.braking and rotating directionchange is controlled by hy raulic system,or by hand operation,all to the choice of users. 3.The saddle guide way is glued by "TSF" soft belt wear resisting materials. 4.On userdemand,we can equip the lathe with automatic feeding mechanism.The top slide can be used independently for turning of short cone.In com bination with longitudinal feeding,it can also turn long taper surface.
Add to Wishlist
Add to Wishlist

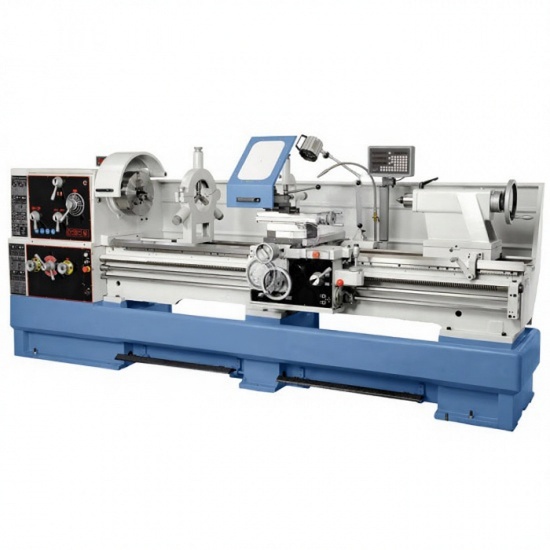

Heavy Duty Horizontal Lathe Machine GH-6266A
Compare

Heavy Duty Horizontal Lathe Machine GH-6266A

Available on backorder
Features: 1. Multiple discs forward and reversing clutch system 2.Overload protection on drive motor and coolant system 3.Universal enclosed gearbox incorporating metric & imperial thread capabilities 4.Footoperated spindle brake with safety cut out switch 5.X & Zaxis rapid traverse selection lever incorporated on the saddle @ 4.5m/min 6.400mm wide induction hardened heavy duty cast iron bed 7.Removable gap bed allowing work piece to swing up to 900mm 8.Cross slide handle disengages when auto feed is used 9.Saddle handwheel disengages when auto feed is used 10.Adjustable clutch for auto feeds protects machine from overloading during machining 11.Chuck guard fitted with safety micro switch 12.Micro switch on side access door 13.Poweredlongitudinal and cross feeds
Add to Wishlist
Add to Wishlist
Heavy duty and horizontal lathe machine CW61100/125/140/160D
Compare

Heavy duty and horizontal lathe machine CW61100/125/140/160D

Available on backorder
Main features: 1. These lathes can perform to turn end-faces, cylindrical surfaces and internal holes of various parts as well as metric, inch, module and pitch threads. 2. The top slides can be operated individually by power for cutting short taper surface. 3. Long taper surface can be turned automatically through the compound movement combining longitudinal feed with the top slide feed, moreover, the machines may be used for drilling, boring and trepanning. 4. They are characteristics of power, high spindle speed, high rigidity. The various ferrous and non-ferrous metals parts may be turned through the heavy cutting by carbon alloy tools.
Add to Wishlist
Add to Wishlist

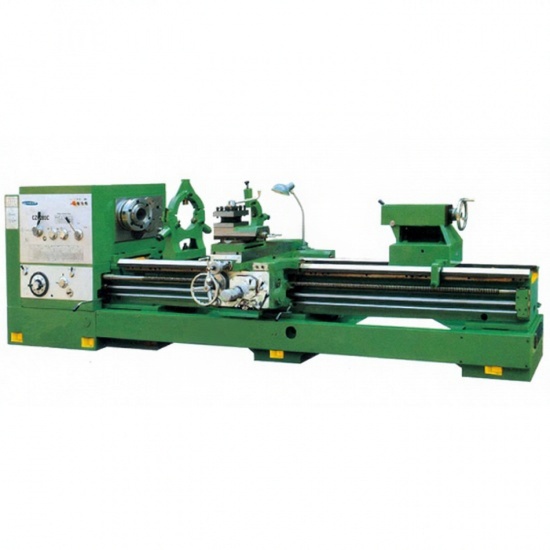

Heavy Duty Horizontal Lathe Machine C6280CZ
Compare

Heavy Duty Horizontal Lathe Machine C6280CZ

Available on backorder
Main features:

1. Integrated bed ensures the rigidity of the the machine ;

2. Torno guideway is medium frequency hardened, and has good hardness and precision;

3. Triple support of the machine  ensures spindle rigidity andsupporting capacity;

4. Torno spindle has the large speed range, and the motion is smooth and the low temperature-rising;

5. The machine has the nice and dignified appearance;

Add to Wishlist
Add to Wishlist

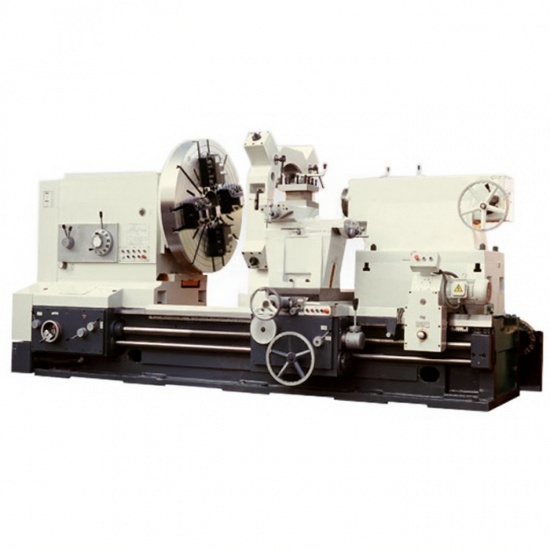

Heavy Duty Horizontal Lathe Machine CW61160L
Compare

Heavy Duty Horizontal Lathe Machine CW61160L

Available on backorder
Features: 1.These lathes can perform to turn end-faces,cylindricl surfaces and internalholes of various parts as well as metric,inch,module and pitch threads. 2.The top slides can be  operatedindividually by power for cutting short taper surface. 3.Long taper surface can be turned automatically through the compound movement  combining longitudinal feed with the top slidefeed, more over, the machines may be used  for drilling,boring and trepanning. 4.They are characteristics of power,high spindle speed,high rigidity. 5.The various ferrous and non-ferrous metals parts may be turned through theheavy cutting by carbon alloy tools.
Add to Wishlist
Add to Wishlist
Heavy duty and horizontal lathe machine CW6280A
Compare

Heavy duty and horizontal lathe machine CW6280A

Available on backorder
Main features:

1. The bed guide and gears of spindle box have beenprocessed by hardening and precision grinding with long life and low noise.

2. The spindle system has a good rigidity and highprecision.

3. This carriage has the fast forward and retreatfeeding device.

4. Hydraulic clutch institutions have been adopted inthe spindle box with smooth start and quick brake.

5. Bed body has stop retreat groove of the tailstock.

Add to Wishlist
Add to Wishlist

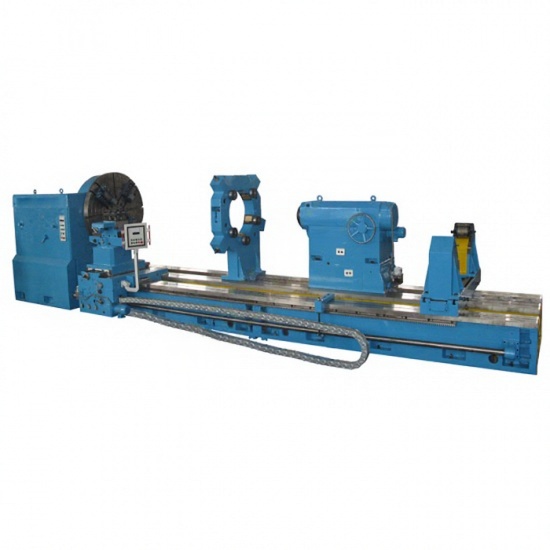

Heavy Duty Horizontal Lathe Machine C61160
Compare

Heavy Duty Horizontal Lathe Machine C61160

Available on backorder
Features: 1.This is type of universal lathe which bearing thirty-two Ton 2.it is applicable to turningexternal and internal cylindrical surface, oil grooves. 3.it can turn different kindsof screw thread which length short of 600 mill metric with top knife carrier. 4.This machine tool bedstructure is integral BOX-shaped and three strip rectangle guide way 5. it is found once by highquality cast iron(HT300), through two-aged processing 6.stability is good 7.Width guide way surface (1250mm) 8.good rigidity , 9.strong anti-vibraton ability 10.it is accurate ground by import guide way grinder.
Add to Wishlist
Add to Wishlist
Heavy Duty Horizontal Lathe Machine CW62103C
Compare

Heavy Duty Horizontal Lathe Machine CW62103C

Available on backorder
Features: 1. Harden gear,harden bed way. 2. 130mm spindle bore for optional . 3. 610mm bed way,strong rigidity . 4. Solid bed,good antivibration. 5. Head stock runs on taperroller bearings. 6. Powerful 11KW motor forheavy-duty cutting. 7. Overload slip clutch enclosedin apron.
Add to Wishlist
Add to Wishlist
Manual shearing machine BQ01-1.25X650,BQ01-1.0X1050
Compare

Manual shearing machine BQ01-1.25X650,BQ01-1.0X1050

Available on backorder
Main features: 1.   handle control 2.   delivered with working light 3.   used for mild steel, aluminium copper, brass zinc plastic and leads 4.   high carbon and chrome steel blade
Add to Wishlist
Add to Wishlist
Manual shearing machine Q01-1. 5×1500,Q01-1.25X2000,Q01-1.5X1050,Q01-0.8X2500
Compare

Manual shearing machine Q01-1. 5×1500,Q01-1.25X2000,Q01-1.5X1050,Q01-0.8X2500

Available on backorder
Features: 1. This hand shear is used to shear mild steel, aluminium copper ,brass zinc plastic and leads 2. It features manual and easy operation. 3. It has high carbon and chrome steel blade
Add to Wishlist
Add to Wishlist
Conventional Gear Hobbing Machine
Compare

Conventional Gear Hobbing Machine

Available on backorder
Add to Wishlist
Add to Wishlist
Round Column Drilling Machine D2,D3,D4
Compare

Round Column Drilling Machine D2,D3,D4

Available on backorder
Features: 1.Can be used drilling, core drilling, reaming, boring, tapping,spot-facing and chamfering etc. 2. Electrical system conforms with IEC standards. 3. The worktable can be rotated 360°or leaned +-45°and operated easily. 4.Change Speed with gears and operate easily. 5.8 speed steps with positive torque transmission - no belt slippage. 6.Easy rpm adjustment via two shift levers and 2-step main motor. 7.Heavy construction with thick-walled column. 8.Hand wheel for vertical feed of head with solid dual-clamp. 8.Depth scale with adjustable depth stop. 10.Height adjustable table and head allow the user to set the optimal work height.
Add to Wishlist
Add to Wishlist
Round Column Drilling Machine Z5032A
Compare

Round Column Drilling Machine Z5032A

Available on backorder
Features: 1.Gear driven system, 12 steps ofspindle speed. 2.Convenient loading andunloading tool device. 3.Automatic feed andtapping(Electromagnetic clutch),realize auto feed and tapping by putting anybutton on the feed handle. 4.CE or CSA or UL approved mainelectrical components. 5.Safety drill-guard withmicro-switch. 6.Worktable can be tilted ±45°and rotated ±180°round thecolumn. 7.Spindle box can be tilted ±45°and liftedup and down along the column. 8.Overload and short cutprotection 9.With coolant system
Add to Wishlist
Add to Wishlist
Round Column Drilling Machine Z5040E,Z5040
Compare

Round Column Drilling Machine Z5040E,Z5040

Available on backorder
Main features: 1.Ideal for industrial workshop use 2.Geared head drilling machine with 4 morse taper spindle 3.Thread tapping with auto reverse 4.Automatic feed range (0.1, 0.2mm/rev) 5.18 drilling speeds from 50-1450rpm 6.Chuck guard with micro-switch 7.Drill ejector incorporated in machine 8.Coolant pump system with flexible hose
Add to Wishlist
Add to Wishlist
Round Column Drilling Machine Z5030A,Z5035A,Z5040A,Z5050A
Compare

Round Column Drilling Machine Z5030A,Z5035A,Z5040A,Z5050A

Available on backorder
Main Features: 1.   New-designed,pleasing appearance,compact construction, wides speed change range,easy to operate. 2.   Easy operation with its uniqueworkable,and both motor-drive and manual-operated lifting device. 3.   The working table can be roteted180 and can be tited +45 and -45 also it is reliable and easy job can be done. 4.   Equipped with coolant systemand tapping mechanism. 5.   Equipped with short cut and overload protection, its electric, a system with powerful spindle-otormit designed according to           IEC standard. 6.   Characteristic protection device, small batch and mass production for drilling, counter boring, reaming,tapping, spot faing, ect.
Add to Wishlist
Add to Wishlist
